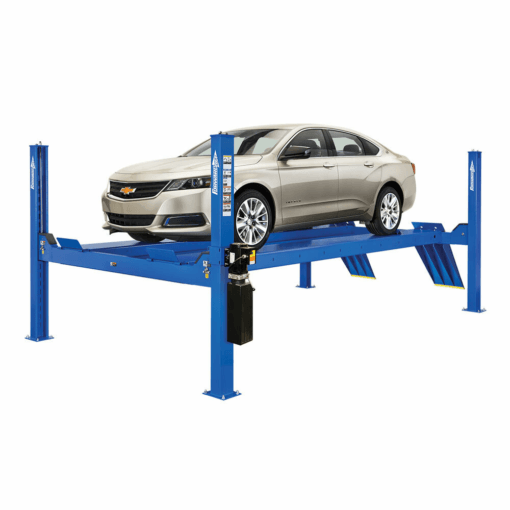

CR14 Four-Post Lift Features:
Designed to meet the service needs of today’s cars, vans, and trucks with 14,000 lbs. capacity!
Taller column design adds an 79″ rise height providing techs better vehicle service access. This coupled with the multi-position lock components keeps your shop flexible. A new improved heavy duty high-performance cable and sheaves system conveniently concealed under the runway – this heavy duty system allows for greater capacity and durability. Tucked under the lift this system remains accessible for quick inspections yet doesn’t pose a snag issue while working. Durable powder coat finish ensures your lift will continue to look good for years of service. Self-chocking approach ramps engage when lift is raised – protective strips on ramps prevent floor gouging. All Forward products are proof load tested to 1½ times rated capacity! The combination of high quality products and service provides you with the very best value – while not compromising safety, functionality or durability.
Additional Features:
- Heavy duty hydraulic cylinder
- Single Point latch release system
- One piece formed runway design incorporates rolling jack channels
- Multiple position latch points in each structural leg
Optional Accessories:
- 7,000 lbs. capacity rolling bridge jacks
- Drive Through ramps optional
- Internal airline kit
- Turning radius gauges
- Power unit cover
- 3-phase motor
Specifications
| SPECIFICATIONS | CR14N202Y |
|---|---|
| Capacity | 14,000 lbs. (6350kg) |
| Rise | 78-3/4″ (2000mm) |
| Maximum Wheelbase | 215″ (5460mm) |
| Overall Length | 283″ (7188mm) |
| Overall Width | 131-3/4″ (3568mm) |
| Width Inside Columns | 116-1/4″ (2953mm) |
| Length Between Columns | 228-1/4″ (4946mm) |
| Overall Height | 90-1/2″ (2299mm) |
| Runway Width | 20″ (508mm) |
| Runway Height | 7″ (178mm) |
| Width Between Runways | 43″ (1092mm) or 46″ (1168mm) |
| Rise Time | 72 seconds |
| Voltage* | 208/230v |
| Motor | 2HP |
| Minimum Bay Size | 15′ x 28′ (4572 x 8534mm) |
