About this item:

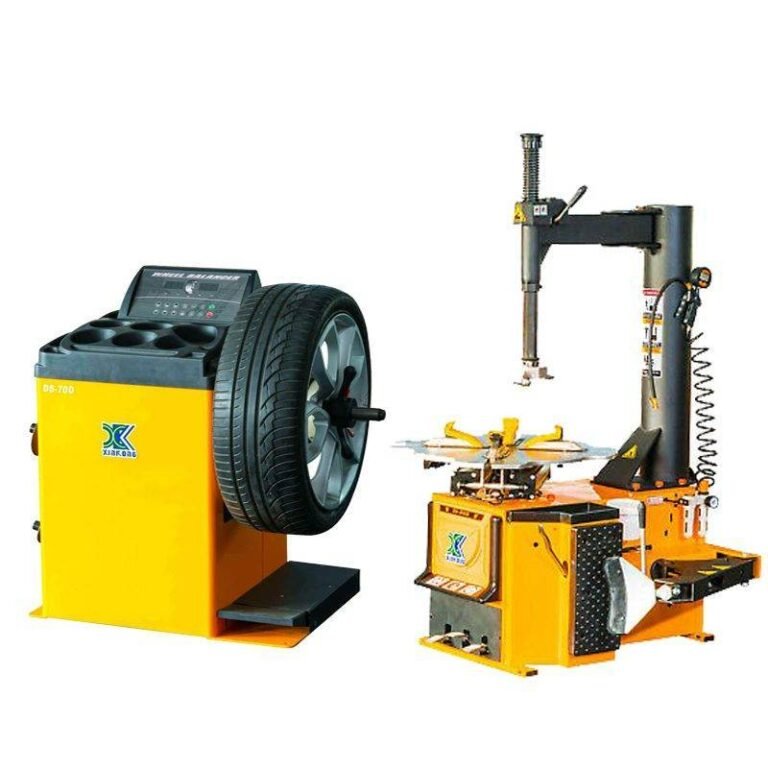

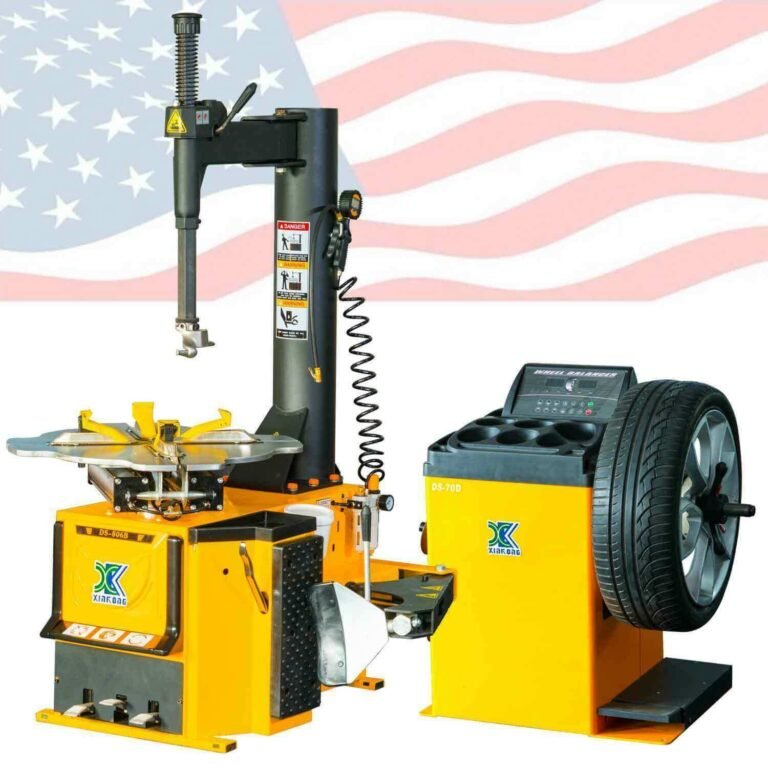

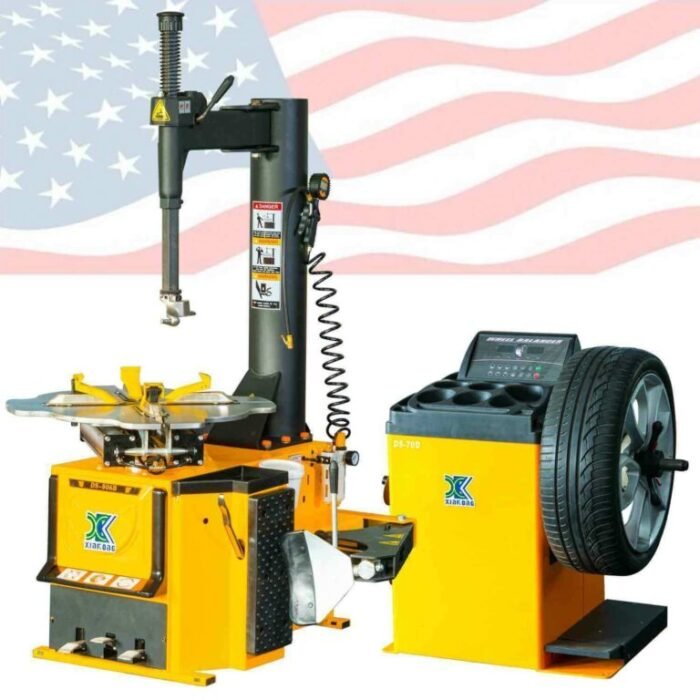

Tire Changer and Wheel Balancer 806B 70D COMBO. TIRE CHANGER MACHINE FEATURES WHEEL BALANCER MACHINE FEATURES Rim clamp from outside 14″-28″ .

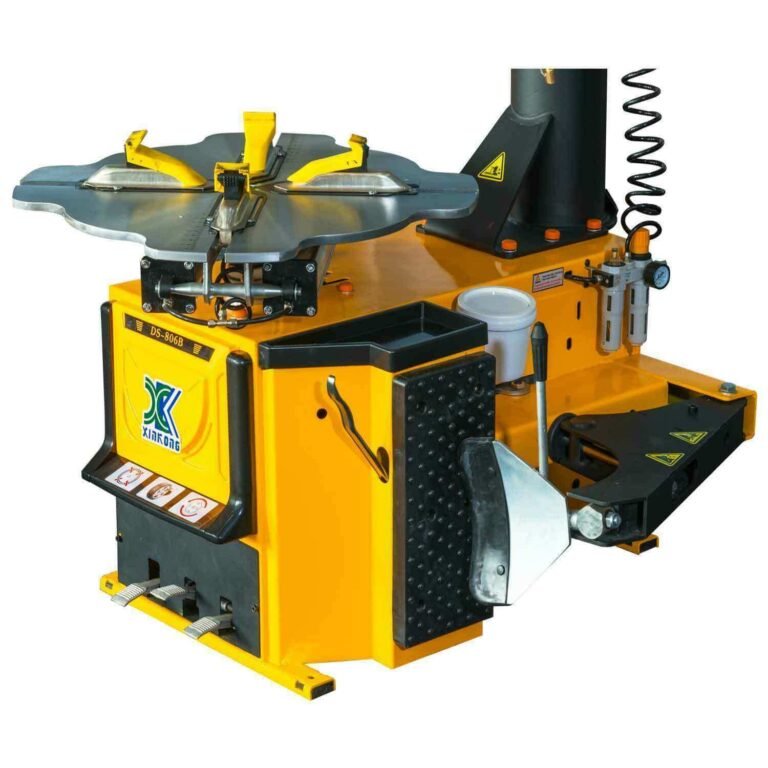

Tire changer machine features:
- Enhanced s41 hexagon shaft with better intensity to avoid mechanical deformation during working.
- The clamping jaw is equipped with a protective sleeve to provide more comprehensive protection for the tires and rims.
- Equipped with mechanical arm which makes mounting and demounting tire more quicker and easier.The clamping jaw is made of special materials and is firm and durable.
- Base of mechanical arm is a complete one set, inside with wear-resistant macromolecule nylon slide block, to achieve smooth operating.
- The structure design is novel, the layout is reasonable, in order to use more flexible and convenient.
- New design automatic working head instead of crowbar and quipped with plastic protective pad to double protect the rim from damage.
Changer machine technical parameter:
- Rim clamp from outside 12″-26″
- Rim clamp from inside 15″-28″
- Max wheel diameter 46″
- Max tire width 5″-14″
- Working pressure 8-10 bar
- Voltage 110V
- Power 1.1KW
- Complete machine packing size 1250x1050x1760mm
- Gross weight 816 lb

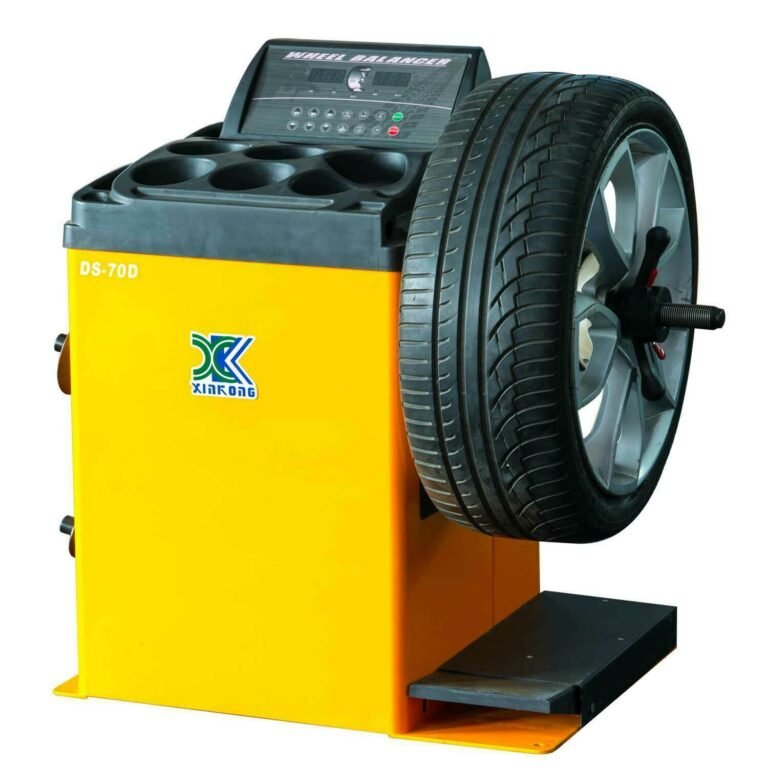

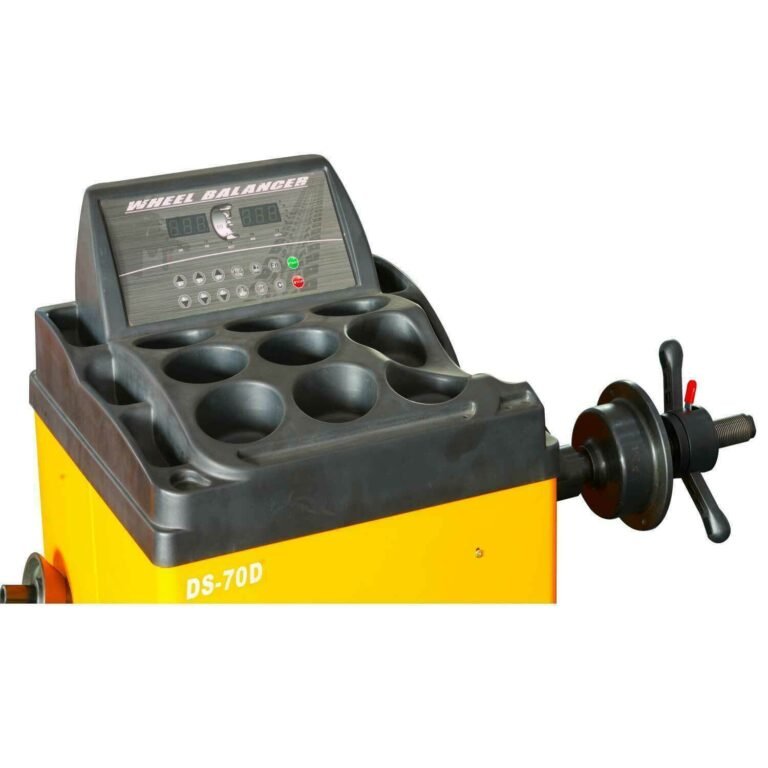

Wheel balancer machine features:
- with Automatic Static Program And Dynamic Program, Alu Program.
- with External And Internal Data Set Arm, Simple Operation, Measurement Accuracy.
- with A Variety Of Balancing Program, Suitable For Different Wheel Structure.
- htd Program, Split To Hide Weight Behind Spokes.
- opt Program Wheel Vs Rim Optimization.
- foot Brake Positioning At Unbalanced Point, Improve The Balancing Accuracy.
- with Fault Diagnosis System To Check The Working Status Of Key Components, Easy To Detect And Solve The Problem.
Wheel balancer technical parameter:
- Rim diameter 10″-24″
- Max tire diameter 39″
- Tire width 1.5″-16″
- Max tire weight 154 lb
- Packing size 980x700x1050mm
- Rotation speed 200r/ min
- Balancer precision +-1g
- Motor 110V
- Gross weight 269 lb
Specifications:
- Rim Diameter 10″-24″
- Max Tire Diameter 39″
- Tire Width 1.5″-16″
- Max Tire Weight 154 Lb
- Packing Size 980x 700x 1050 Mm
- Rotation Speed 200 R/min
- Balancer Precision -1g
- Motor 110v
- Gross Weight 269 Lb
- Condition: New
- Power Source: Pneumatic
- Vehicle Type: ATV, Heavy Duty/Commercial, Passenger Vehicle
- Brand: XK
- Set or Single Item: Set
